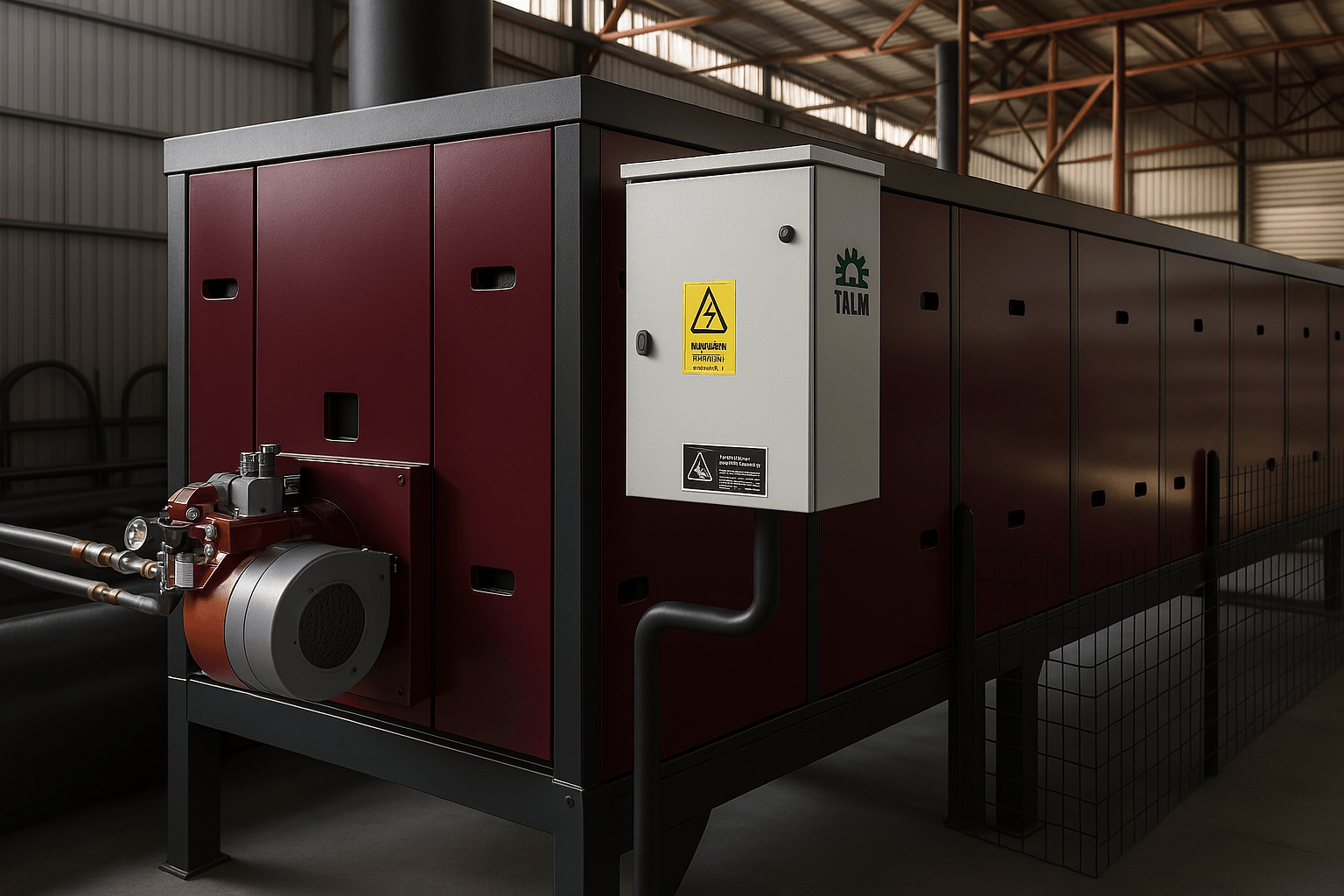

At France AJ Materials, we provide industrial-grade rotary waste incinerators designed for safe, efficient, and environmentally responsible waste disposal. Our systems are engineered to handle municipal, medical, and industrial waste, offering high-temperature combustion with minimal emissions and energy recovery capability. Each unit is built with advanced filtration and heat recovery technology, ensuring compliance with international environmental standards while supporting sustainable waste-to-energy operations.
How It Works
- Startup: The LPG burner ignites and preheats the combustion chamber.
- Feeding: Waste is introduced once the chimney temperature reaches around 150 °C.
- Rotation: The rotary burning chamber continuously turns, ensuring uniform drying and burning as internal paddles mix and move the waste forward.
- Combustion: Heat from the burner dries and ignites the waste, maintaining consistent burning efficiency.
- Ash Removal: Ash exits automatically through the bottom outlet as burning completes.
- Gas Treatment:
- Cyclone Filter : Removes particulate matter from flue gases.
- Wet Scrubber : Washes the gases before safe release through the chimney.
- Energy Recovery: The system’s heat output can be reused for hot water production or connected to electricity generation systems (ORC).
Key Features
- Fully automatic operation with PLC-based control panel
- Rotating main chamber for maximum burning efficiency
- Primary and secondary burners for complete waste destruction
- Speed-controlled draft fan for optimal air circulation
- Dual-stage filtration with cyclone and wet scrubber
- Energy-efficient design suitable for continuous operation
- Designed for medical, plastic, and mixed municipal waste
Applications & Design Guidance
The Rotary Waste Incinerator is ideal for organizations and industries requiring clean, contained waste destruction while minimizing environmental impact:
- Hospitals & Clinics: Safe disposal of medical and biological waste
- Industrial Facilities: Treatment of solid and semi-solid production waste
- Municipal Waste Stations: General waste reduction and ash volume minimization
- Remote Projects & Camps: On-site waste treatment with compact footprint
- Energy Projects: Integration with waste-to-energy power generation systems
France AJ Materials provides complete installation support and technical guidance to ensure compliance with local environmental regulations and operational safety.
Specifications
- Type: Rotary Waste Incinerator
- Fuel: LPG / Diesel (optional)
- Sizes Available: Multiple standard dimensions
- Electrical Consumption: 5.5 kW – 10 kW
- Gas Consumption (LPG): 2 kg/hour
- Incineration Capacity : 250 – 500 kg/hour
- Dimensions (W×H×L): 1.4 m × 2.35 m × 7 m
- Weight: 6000 kg
- Minimum Installation Area: 56 m² (8 × 7 m)
- Main Chamber: 8 mm steel, lined with heat-resistant cement and stone wool insulation
- Flue Gas Treatment: Cyclone Filter + Wet Scrubber + Secondary Burner
- Control System: PLC Automatic Control Panel
- Draft Fan: Speed-Controlled
- Ash Removal: Automatic bottom discharge
- Output Use: Heat for water or power generation (ORC system)
Why Choose France AJ Materials
- Established in 2021, based in Phnom Penh, Cambodia
- Supplier of advanced industrial and environmental solutions
- Focused on innovation, efficiency, and sustainability
- Trusted by municipalities, industrial operators, and EPC contractors
- Committed to turning waste into renewable energy through advanced technology
